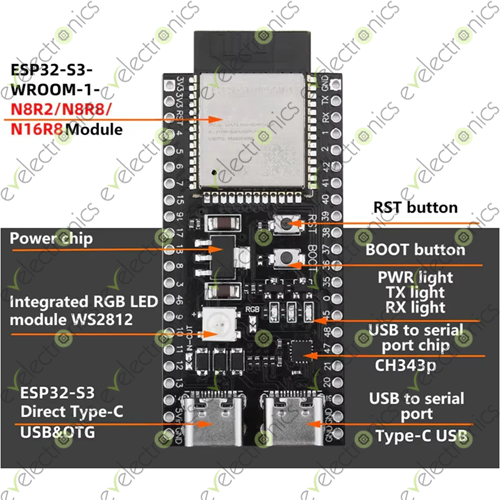

ESP32-S3 Devkitc-1 N16R8 Development Board-16MB Flash 8MB Psram Wi-Fi Bluetooth 5.0

Product details of ESP32-S3 Devkitc-1 N16R8 Development Board-16MB Flash 8MB Psram Wi-Fi Bluetooth 5.0
The ESP32-S3 DevKitC-1 N16R8 is a powerful, feature-rich development board designed for professional IoT applications, wireless connectivity projects, and embedded systems development. Built on Espressif's advanced ESP32-S3 dual-core processor, this board delivers exceptional performance with 16MB Flash memory and 8MB PSRAM, making it ideal for complex applications requiring substantial storage and processing power.

Specification of ESP32-S3 Devkitc-1 N16R8 Development Board-16MB Flash 8MB Psram Wi-Fi Bluetooth 5.0
Microcontroller:

Chip: ESP32-S3-WROOM-1-N16R8
CPU: Dual-core Xtensa 32-bit LX7 microprocessor, up to 240 MHz
Flash Memory: 16MB (128 Mbit) Quad SPI Flash
PSRAM: 8MB (64 Mbit) Octal SPI PSRAM
ROM: 384 KB for boot and core functions
SRAM: 512 KB internal SRAM
Wireless Connectivity:

Wi-Fi: IEEE 802.11 b/g/n (2.4 GHz), up to 150 Mbps
Bluetooth: Bluetooth 5.0 LE with long-range support
Antenna: Integrated PCB antenna (no external antenna connector)
Wi-Fi Modes: Station, SoftAP, SoftAP+Station, Promiscuous
Security: WPA/WPA2/WPA3, Enterprise encryption
GPIO & Peripherals:

GPIO Pins: 45 programmable GPIOs
ADC: 2× 12-bit SAR ADCs, up to 20 channels
DAC: 2× 8-bit DAC channels
Touch Sensors: 14 capacitive touch sensing GPIOs
SPI: 4× SPI interfaces (Quad SPI support)
I2C: 2× I2C interfaces
I2S: 2× I2S interfaces for audio applications
UART: 3× UART interfaces
PWM: 8× LED PWM controllers
USB: USB 2.0 OTG full-speed interface
JTAG: Built-in JTAG for debugging
Power Specifications:

Operating Voltage: 3.3V
Input Voltage (USB): 5V via USB-C
Input Voltage (VIN): 5V via pin header
Power Consumption: Ultra-low power modes available (deep sleep: ~7 μA)
Power Supply: USB-C or external 5V power supply
Physical Specifications:

Dimensions: Approximately 55.5mm × 28mm
Weight: 50 grams
Pin Headers: 2× 19-pin headers (2.54mm pitch)
Operating Temperature: -40°C to +85°C
