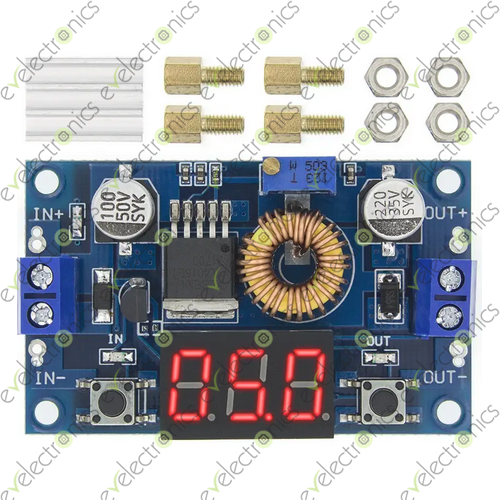

DC-DC XL4015 4-38V to 1.25-36V 5A Step Down Buck Converter Module with Display

Product details of DC-DC XL4015 4-38V to 1.25-36V 5A Step Down Buck Converter Module with Display
The XL4015 is a 5A, 180kHz fixed frequency PWM buck (step-down) DC/DC converter. XL4015 Module is a monolithic integrated circuit that includes all the necessary components for a step-down converter, including a high-efficiency switching regulator, oscillator, and feedback controller.

Specification of DC-DC XL4015 8-36V to 1.25-32V 5A Step Down Buck Converter Module with Display
Model: XL4015
Input Voltage: 4-38V/DC
Output Voltage: 1.25-36V/DC
Output Current: 5A (Max.)
Output Power: 75W
Working Frequency: 180KHz
Size Range: 4-40V/DC
Conversion Efficiency: Up to 96%
Voltmeter Error Accuracy: ±0.05V
Input Reverse Polarity Protection: No
Display: Digital – Color
Size: 60x37x14mm
