CP2102 USB 2.0 To TTL / 485 / 232 Six multifunction Serial Converter 12-Pin

Product details of CP2102 USB 2.0 To TTL / 485 / 232 Six multifunction Serial Converter 12-Pin
The most powerful USB serial debugging tools, set USB to serial (TTL), to 232, turn 485, TTL, 232,485 conversion six practical function in a professional debugging tools, and the other supports 3.3V, 5V Oh the power output. Module ingenious design, making the board at the same time put the heat shrink tubing protection, without affecting the operation of the module. Module easy to operate, simple and can be used for single-chip program download, serial communications, 485, etc., are carried out pro microcontroller development essential artifact! !

Specification of CP2102 USB 2.0 To TTL / 485 / 232 Six multifunction Serial Converter 12-Pin
Six-in-one Multifunctional Serial adater supports usb-ttl, usb-rs232, usb-rs485, ttl-232, ttl-485, 232-485 converting function, freely convert to each other
Built-in Chip: stable and reliable CP2102 chipset
Driver: CP2102 UART Driver
Current: <500mA
Input Voltage: 3.3-5V
Temperature Range: -40℃ to +85℃
USB Interface: 2.0
Baud Rate: 300 bps to 1.5 Mbps

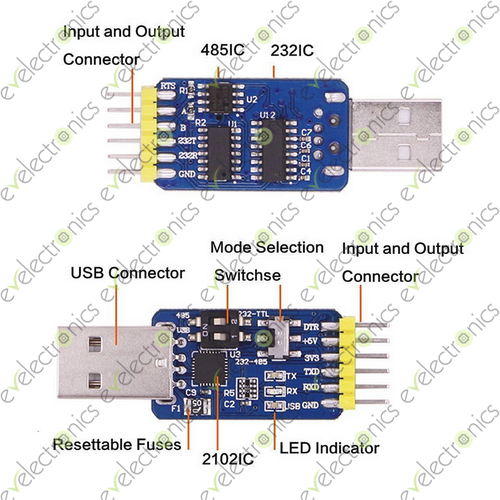

Pin Definition: Standard USB type A male and TTL(TXD RXD) 232(232T 232R) 485(A B) 3.3V 5V.
Highlights: USB TTL 232 485 can freely convert to each other
Key Function: USB-TTL, USB-RS232, USB-RS485, TTL-RS232, TTL-RS485, RS232-RS485
LED Indicator: Yellow light flashing (COM port connection), red light flashing (data receiving), green light flashing (data sending)
