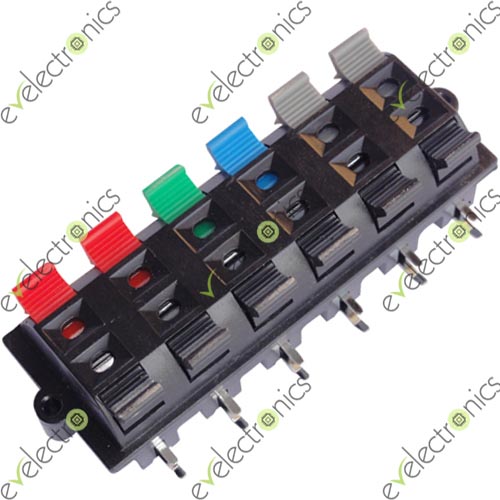

12 Way 2 Row WP Push Release Terminal Speaker Connector Plate

Product details of 12 Way 2 Row WP Push Release Terminal Speaker Connector Plate
12 Way 2 Row WP Push Release Terminal Speaker Connector Plate

Specification of 12 Way 2 Row WP Push Release Terminal Speaker Connector Plate
12 pins 2 row push type speaker terminal board.
Spring load design,easy to use
Rated Load: AC 50V 3A
Wire Range: AWG 24-16
Temperature: -40 to 55 C
Contact Resistance: <= 0.03 Ohm
Insulation Resistance: >= 100M Ohm
Withstand Voltage: AC 500V 1 Minute
Actuating Force: 1 Kgf
Life: >10000 Times

Specifications
Type: Push Release Type
Material: Plastic, Metal
Mounting Hole Dia.: 3mm/ 0.12inch
Total Size: 9 x 3 x 2.5cm/ 3.5 x 1.2 x 1inch(L*W*H)
Pin Quantity: 12 pin
Mounting Hole Center Distance: 84mm/ 3.3inch
Position: 12 Way (2 row)

Package included:
1 x 12 Way 2 Row WP Push Release Terminal Speaker Connector Plate
