Brand: Unbranded
SKU: 7867
Availability: In Stock
Rs.5,300.0

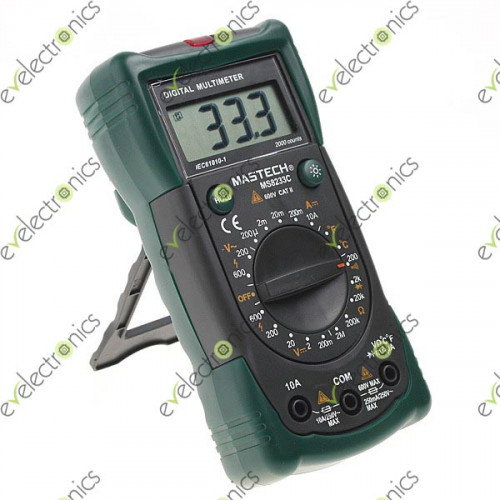

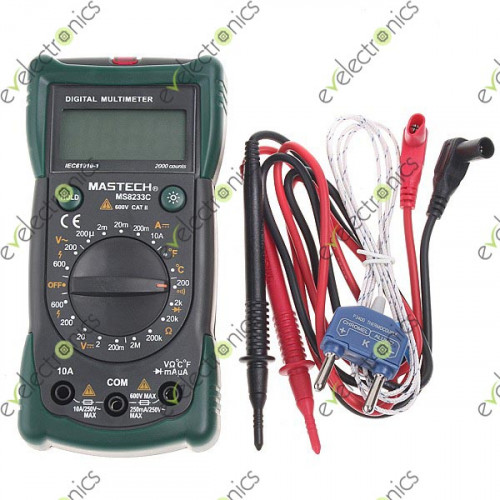

Mastech MS8233D is a digital multimeter, which is capable of all standard functions including AC/DC voltage and DC current, resistance, diode check, continuity test and temperature.

Features:
Function including AC/DC voltage and DC current, resistance, diode check, continuity test and temperature.
3 1/2 digital Back-lit LCD display with a maximum reading 1,999
Non-contact AC voltage detector ( > 90 V/AC), and LED flash warning.
Temperature measurement (°C & °F selectable).
In conformance with international safety standards IEC1010-1 CAT III 600V.
Data hold function.
All range protection.
Over range indication & battery indication.
Polarity indication.
Tilt back stand.

Specifications:
DC Voltage: 200mV/2V/20V/200V±0.5%, 600V±0.8%
AC Voltage: 200V±1.2%, 600V±1.2%
DC Current: 200uA/2mA/20mA/200mA ±1.0%.10A ±3.0%
Resistance: 200Ω/2K/20KΩ/200KΩ/2MΩ ±0.8%.
Temperature: (°C): -20 °C - 0 °C ±10.0%, 0 °C - 400 °C ±1.0%, 400 °C - 1,000 °C ±3.0%,
Temperature: (°F): -4 °F - 32 °F ±10.0%, 32 °F - 752 °F ±1.0%, 752 °F - 1,832°F ±3.0%,
Frequency: 20KHz
Power: 9V battery (include)
Item size: 14.5 * 7.5 * 4.7cm
Item weight: 200g
Package size: 15.8 * 11 * 5.5cm
Package weight: 345g
